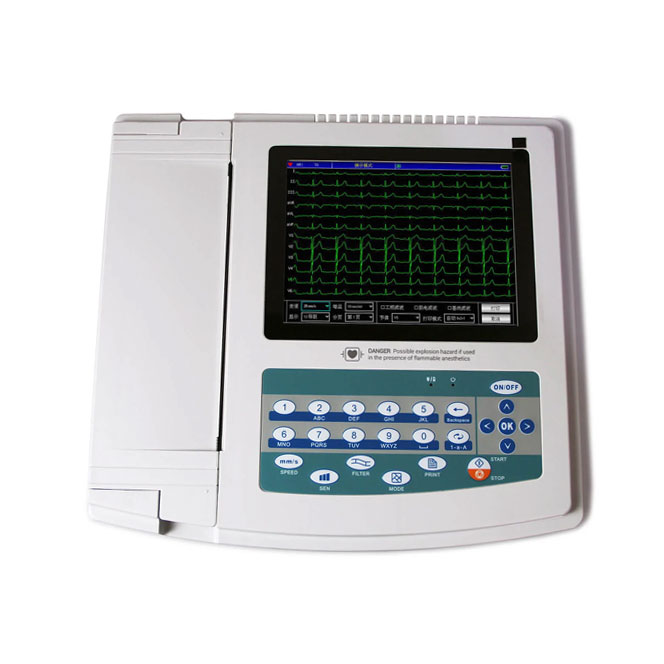

CONTEC ECG1200G Digital 12 channel/lead EKG+PC Sync software, Electrocardiograph Touch Screen

Brands: CONTEC

    M.R.P. ₹ 1,53,999.00 (Inclusive of all taxes)
    Price: ₹ 76,876.80
    Availability:
    In Stock
    SKU: ECG1200G


COD Service Available to Buyers from Delhi Only
(Charges will apply)

  • 100% Original Products
  • Hassle Free Returns
  • Secure Payments
  • EMI available on orders above ₹ 3,000.00 on select credit cards.
WhatsApp or Call
093500-93400

For Bulk Enquiry
Click on WhatsApp icon and write product code with quantity.


Download product catalog
Download certificate

ECG1200G is an electrocardiograph which can collect 12-lead ECG signal simultaneously and print ECG waveform with thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, AC/DC, selecting rhythm lead, printing the trend chart and histogram of P-R interval, case database management.


Function

  1. Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.
  2. Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing.
  3. Multiply printing modes and formats, including auto 12x1, auto 6x2+1, auto 6x2+1_H, auto 6x2, auto 6x2_H, auto 3x4+1, auto 3x4+2, rhythm 12, rhythm 10, rhythm 8, rhythm 6, manual, etc. Trend chart and histogram of P-R interval can be printed, waveform length printed can be adjusted, and with time print function, which meets different requirements.
  4. Paper speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.
  5. With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.
  6. Built-in memory stores up to 1000 cases, convenient for case review and statistic.
  7. Multi-language(Turkish, French, Chinese, English, German, Kazakstan, Polish, Portuguese, Russian, Slovenian, Spanish and Ukrainian) interface and report.
  8. In optimal DC state, up to 10-hour standby time, continuous print more than 3-hour, record up to 300 ECG waveform(commonly, it is 3s case), which meets the requirements of visiting a patient at home and body examination.


Performance

  • Input mode: floating and defibrillation protection
  • Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
  • CMRR: >60dB, >100dB(add filter)
  • Time constant:≥ 3.2s
  • Patient leak current: <10µA
  • Calibration voltage: 1mV
  • Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2%
  • Noise level: ≤15µVp-p
  • Input circuit current: ≤50nA
  • Input impedance: ≥50MΩ
  • Sampling accuracy: 12-bit
  • Safety classification: class I, type CF and defibrillation-proof applied part
  • Recording mode: thermal printing system
  • Paper size: 210mm(W)×20m(L)
  • Sampling frequency: 1000Hz
  • EMG interference filter: 25Hz/35Hz (-3dB)
  • Power frequency filter: AC 50Hz/60Hz(-20dB)
  • Paper speed:
  • Auto: 25, 50mm/s, ±5%
  • Rhythm: 25, 50mm/s, ±5%
  • Manual: 5, 6.25, 10, 12.5, 25, 50mm/s, ±5%
  • Auto record: set record according to auto record format and mode, automatically switching leads, measuring and analyzing.
  • Rhythm record: set record according to rhythm record format and mode, automatically measuring and analyzing.
  • Manual record: set record according to record format, manually switching leads.
  • Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
  • Power supply:
  • AC: 100V~240V(50/60Hz)
  • DC: 14.8V/3500mAh rechargeable lithium battery
  • Fuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250V
  • Waterproof degree: IPX0
  • Working mode: continuous working


Accessories

  • Standard:
  • A lead cable
  • A limb electrode
  • A chest electrode
  • A thermal recording paper
  • A power cord
  • An earth wire
  • A user manual


Physical characteristic

  • Working environment
  • Temperature: 5℃~40℃
  • Relative humidity: 25%~95%(non-condensing)
  • Atmospheric pressure: 700hPa~1060hPa
  • Transport and storage environment
  • Temperature: -40℃~+55℃
  • Relative humidity: ≤95%
  • Atmospheric pressure: 500hPa~1060hPa
  • Dimension: 340mm(L) × 320mm(W) × 85mm(H)
  • Weigh: 3.2Kg
